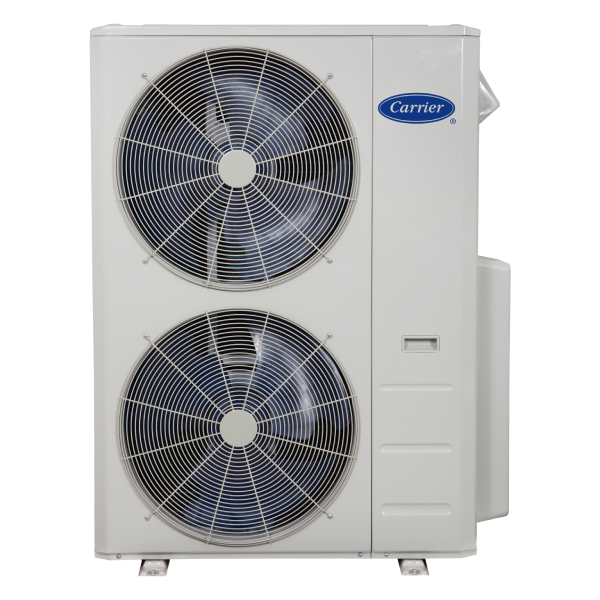

Performance Multi-Zone Heat Pump With Basepan Heater 38MGR

Performance Multi-Zone Heat Pump With Basepan Heater 38MGR

Performance

Cooling Efficiency :Up to 23.8 SEER
Heating Efficiency :Up to 10.5 HSPF
Comfort Features :Better

Up to $300 in rebates in Menlo Park, CA

Standard Features

  • 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
  • Inverter Compressor
  • Up to 23.8 SEER cooling efficiency
  • Up to 10.5 HSPF heating efficiency
  • Sizes: 18 / 24 / 30 /36 / 48
  • Available in 208/230V
  • Built-in Basepan Heater
  • Connects two to five multiple style indoor units (Performance™) off a single outdoor unit
  • Condenser high temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor sound operation, as low as 62 decibels1
  • Total piping length 131 ~ 328 ft. (40 ~ 100 m) depending on unit capacity
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

1 Quietest size within each model group during most common cooling operating condition.

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

Efficiency

  • Up to 23.8 SEER
  • Up to 13.5 EER
  • Up to 10.5 HSPF
  • Select systems are ENERGY STAR® certified based on indoor unit combinations

Performance

  • Outdoor sound: as low as 62 decibels1

Outdoor Operating Range

  • Cooling mode Min-Max DB: -13° ~ 122° F (-25° ~ 50° C)
  • Heating mode Min-Max DB: -22° ~ 86° F (-30° ~ 30° C)

LIine Length

  • Up to 131 ~ 328 ft. (40 ~ 100 m)

Technology

  • Inverter Compressor

Capicities

  • 1.5 ~ 4 tons

Requirements

  • 208/230V

Aesthetics

  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white

COMPARE TO OTHER MODELS
1 Quietest size within each model group during most common cooling operating condition.

If you happen to live in a home without ductwork or have a converted area for a living/working space, you’ll appreciate this multi-zone heat pump. The MGR System can provide year-round comfort, cooling for those hot summer days and warmth the rest of the year, even when temperature dips down to 5° F at full heating capacity (with the right size and system combination).

As a multi-zone, you can use up to five multiple style indoor units supported by just this one efficient, outdoor Inverter compressor unit. For quiet comfort in a multi-space application, it can’t be beat.
